3200地面磨抛机
3200地面磨抛机是精磊机械有限公司与美国公司共同研制出的一种新型地面磨削机械，它采用了大功率的变频器调整磨头的转速，采用了H型同步带传动。该机具有结构合理、操作方便、移动灵活、磨削平整度高、光洁度好、能耗低、污染小、效率高等特点。适用于地坪漆、水泥地面的磨平、抛光，旧地坪漆的去除。


技术参数
一、电机功率 ：11 Kw
二、运转速度 ：0——1750  r/min
三、电动推杆行程 ：350mm
四、作用力 ： 400Kg
五、磨削直径 ：800mm
六、磨削头数 ：三个
七、转向 ：公转与自转相结合
八、设备重量 ：600Kg
九、外形尺寸 ：1770×1170×1650mm


山东省莱州市精磊机械有限公司

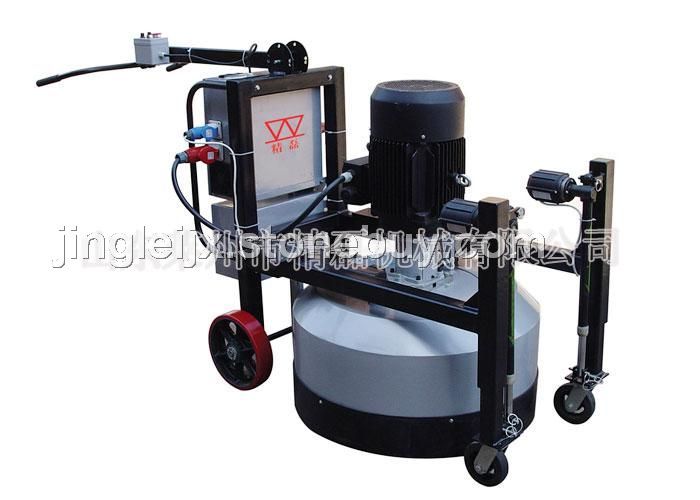

3200 Floor Grinder
This Grinder is a floor grinding machine newly developed through the cooperation between U.S. Corporation and our company. It is equipped with high-power frequency converter to adjust the rotational speed of the grinding heads, and there is no power loss by adoption of H-type synchronous belt transmission. it has the following features: flexible handling, easy operation, fulfilled surface with high flatness and fine glossiness, low consumption, less pollution, high working efficiency and etc. Is suitable in the grounds around a house paint, cement floor smoothing by grinding, polishing, old grounds around a house paint elimination.

Technical Specifications
Motor power：11 Kw
Rotational speed：0——1750  r/min
Electrical pushrod travel：350mm
Acting force： 400Kg
Grinding diameter：800mm
Grinding head number：3
Rotating direction：in the way by combination of rotation and revolution
Weight：600Kg
Overall dimensions：1770×1170×1650mm

Laizhou Jinglei Machinery Co,.Ltd


应用范围：Applications
（1）.混凝土研磨  Concrete grinding
（2）.混凝土抛光  Concrete polishing
（3）.涂料去除    Coatings removal
（4）.表面制备的涂料   Surface prep for coatings
（5）.表面安装的瓷砖  Surface prep for tile and carpet
（6）.花岗岩、大理石制品研磨  Granite, marble polishing products
（7）.石材、混凝土制品扫平 Stone Products, Concrete Products Swinger
